Premium High Purity Stainless Steel Tubing Solutions – Semiconductor

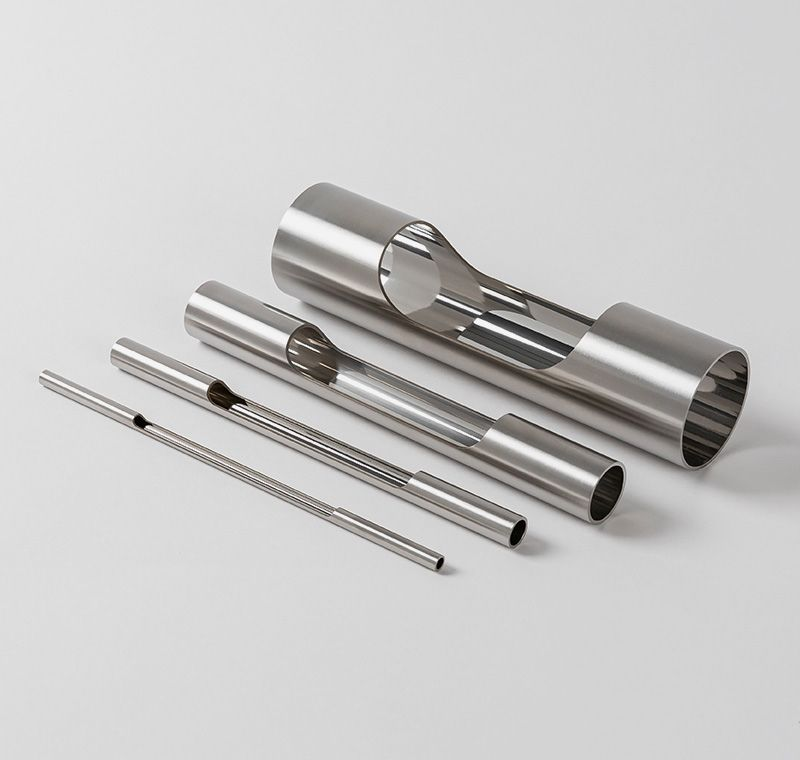

Leading Manufacturer of UHP Stainless Steel Tubes for Semiconductor

When precision and contamination control are paramount, our high purity stainless steel tubing delivers exceptional performance across pharmaceutical, biotechnology, semiconductor, and food processing industries. Engineered with advanced manufacturing processes and rigorous quality controls, these tubes meet the most demanding purity standards required by modern industrial applications.

Understanding High Purity vs. Ultra High Purity Tubing

What Makes High Purity Tubing Special?

High purity stainless steel seamless tubes represent a specialized category of precision tubing designed for environments where contamination could compromise product quality or process integrity. Manufacturing takes place in temperature and pressure-controlled clean rooms, significantly reducing particle generation during machining operations. This controlled environment approach ensures superior cleanliness levels while preventing post-production contamination.

Industries relying on these tubes include biotechnology research facilities, pharmaceutical manufacturing plants using Stainless Steel 316L Flanges, food and beverage processing operations supported by Stainless Steel 304 Flanges, and various laboratory applications where material purity directly impacts outcomes.

Ultra High Purity (UHP) Tubing – The Next Level

UHP stainless steel tubing pushes purity standards even further. Manufactured under more stringent environmental controls than standard high purity variants, UHP tubes undergo extensive material testing to verify minimal impurity content. The semiconductor industry, in particular, depends on UHP tubing for gas delivery systems and critical process equipment where even trace contamination can cause production failures.

The key differentiator lies in the manufacturing environment rigor, material sourcing protocols, and the depth of quality verification testing applied throughout production by a trusted Stainless Steel Sanitary Tube Manufacturer, ensuring consistent performance of Stainless Steel Hygienic Electropolished Pipe and precision-engineered solutions from a reliable Rectangular Tube Manufacturer.

Technical Specifications & Product Range

Available Sizes and Configurations

Imperial Dimensions:

• Outer diameter range: 1/4″ through 2″
• Wall thickness options: 0.035″ to 0.109″
• Standard lengths: 4 meters, 6 meters, or custom cut-to-length

Metric Dimensions:

• OD specifications: 5mm to 50mm
• Wall thickness range: 0.5mm to 4mm
• Customizable length options available

Material Grades and Standards

Our high purity tubing is manufactured from premium stainless steel grades:

• SS304/304L – Excellent corrosion resistance for general applications
• SS316/316L – Superior resistance to chlorides and acidic environments
• Equivalent EN materials: DIN 1.4404 and other European standards

Conforming Standards:

• ASTM A269 – Seamless and welded austenitic stainless steel tubing
• ASTM A270 – Sanitary stainless steel tubing specifications
• ASTM A213 – Seamless ferritic and austenitic alloy-steel tubes
• ASTM A312 – Seamless and welded stainless steel pipe
• EN 10216-5 – European technical delivery conditions
• ASME BPE – Bioprocessing equipment standards

Manufacturing Methods & Surface Treatments

Production Techniques

We offer both seamless and welded high purity stainless steel tubing, each with distinct advantages:

Seamless Manufacturing:

• Eliminates weld seam potential for contamination
• Ideal for high-pressure applications
• Preferred for critical pharmaceutical processes

Welded Production:

• Cost-effective for larger diameter requirements
• Available with full 100% borescope inspection
• Suitable for sanitary applications when properly finished

Advanced Surface Finishing Options

Surface finish quality directly impacts contamination control and cleaning effectiveness. We provide three primary finishing methods:

1. Bright Annealing (BA)

• Outer surface: Ra 0.8μm maximum
• Inner surface: Ra 0.4μm (16Ra) to 0.8μm (32Ra)
• Heat-treated in controlled atmosphere for oxide-free finish

2. Mechanical Polishing (MP)

• External finish: Ra 0.8μm maximum
• Internal finish: Ra 0.4μm to 0.8μm
• Polished on both OD and ID surfaces
• Enhanced smoothness for fluid flow applications

3. Electropolishing (EP)

• Exterior: Ra 0.8μm maximum
• Interior: Ra 0.25μm (10Ra) maximum
• Removes surface imperfections electrochemically
• Creates micro-smooth, passive chrome oxide layer
• Reduces bacterial adhesion and particle entrapment

Quality Control & Testing Procedures

Comprehensive Inspection Protocol

Every tube undergoes rigorous multi-stage testing:

Dimensional Verification:

• Outer diameter tolerance verification
• Wall thickness measurement
• Length accuracy confirmation

Material Analysis:

• Chemical composition testing per heat lot
• Mechanical property validation
• Corrosion resistance evaluation

Surface Quality Assessment:

• Surface roughness testing (Ra values)
• Visual inspection for defects
• Borescope examination for internal surface (when specified)

Non-Destructive Testing:

• Eddy current testing for defect detection
• Hydrostatic pressure testing for leak verification
• Ultrasonic testing (on request)

Destructive Testing (Sample Basis):

• Tensile strength testing
• Bend and deformation tests
• Flattening and flaring tests
• Microstructure examination

Tolerance Specifications

Diameter and Wall Thickness Tolerances

Precision manufacturing ensures consistent quality:

Length tolerance: +1/8″, -0 (imperial) or +1mm, -0 (metric)

Industry Applications

Where High Purity Tubing Makes a Difference

Pharmaceutical Manufacturing:

• Process piping for active pharmaceutical ingredients
• Clean steam distribution systems
• Pure water and WFI (Water for Injection) delivery
• Sterile transfer systems

Biotechnology:

• Cell culture media distribution
• Bioreactor connections
• Chromatography systems (ion exchange, reverse phase, affinity)
• Protein purification equipment

Semiconductor Fabrication:

• Ultra-pure chemical delivery
• Gas distribution networks
• Vacuum system components
• Process tool connections

Food & Beverage Processing:

• Dairy processing equipment
• Beverage production lines
• Sanitary process piping
• CIP (Clean-in-Place) systems

Laboratory Instrumentation:

• Analytical instrument connections
• Sample handling systems
• High-performance liquid chromatography (HPLC)
• Gas chromatography setups

Chemical Composition

SS316/316L High Purity Grade Analysis

Low carbon content (particularly in L grades) minimizes carbide precipitation, reducing corrosion susceptibility in welded areas.

Mechanical Properties

Physical Characteristics – ASME A270 UHP Seamless Tubes

These properties ensure structural integrity while maintaining the ductility necessary for bending and forming operations.

Packaging & Delivery

Protection for Product Integrity

Understanding that tube contamination can occur during transport, we implement comprehensive packaging protocols:

Individual Tube Protection:

• Both ends capped with clean plastic caps
• Each tube placed in separate protective bag
• Prevents internal contamination during shipping

Marking & Identification:

• Size specification (OD × WT)
• Material grade designation
• Applicable product standard
• Heat number for traceability

Packaging Configuration:

• Bundled in protective crating
• Moisture barrier wrapping
• Suitable for international shipping

Global Export Capabilities

We supply high purity stainless steel tubing to major markets worldwide:

• Middle East regions (UAE, Saudi Arabia, Oman)
• African markets (South Africa, Egypt, Kenya)
• Asian destinations (Thailand, Japan, Sri Lanka)
• European countries (Norway, Cyprus)
• American markets (USA)
• Australian territories

Typical delivery timeframes range from 6 to 60 days depending on destination and customs clearance.

–

Product Variants

Specialized High Purity Tube Types

Seamless High Purity Tubes:

• No weld seam for ultimate purity
• Preferred for pharmaceutical applications
• Available in smaller diameter ranges

Welded High Purity Tubes:

• Cost-effective for larger diameters
• Full penetration welds with inline inspection
• Suitable for sanitary process systems

Electropolished BPE Tubing:

• ASME BPE compliant surface finish
• Interior finish: 15 µ-inch (0.38 µm) Ra maximum
• Exterior finish: 32 µ-inch (0.81 µm) Ra maximum
• Ideal for bioprocessing equipment

Mechanically Polished BPE Tubing:

• Interior finish: 20 µ-inch (0.51 µm) Ra maximum
• Exterior finish: 32 µ-inch (0.81 µm) Ra maximum
• Cost-effective alternative to electropolishing

Sanitary Grade Tubing:

• 3A sanitary standards compliance
• Polished to specified Ra values
• Designed for CIP/SIP (Sterilize-in-Place) processes

Sizing Charts & Technical Data

Pressure Rating Information

Wall thickness and diameter directly affect pressure capabilities:

Pressure ratings based on SS316L at ambient temperature. Consult engineering for elevated temperature applications.

Flow Capacity Reference

Understanding flow characteristics helps in system design:

fps = feet per second; gpm = gallons per minute

Surface Finish Options Explained

Available Finish Specifications

Bright Annealed Finish:

• Annealing in protective atmosphere prevents oxidation
• Produces naturally bright, reflective surface
• Minimal surface roughness
• No mechanical processing required
• Maintains dimensional accuracy

Passivated Finish:

• Chemical treatment enhancing corrosion resistance
• Removes free iron from surface
• Creates stable chromium oxide layer
• Essential for pharmaceutical applications

Electropolished Finish:

• Electrochemical surface removal process
• Smoothest finish option available
• Reduces surface area for bacterial adhesion
• Improves cleanability by 99%+
• Removes embedded particles and heat tint

Mill Finish:

• As-manufactured surface condition
• Light oxide layer may be present
• Suitable for less critical applications
• Most economical option

Semi-Polished Finish:

• Intermediate polish level
• Better than mill finish, more economical than full polish
• Suitable for certain sanitary applications

Certification & Compliance

Documentation Provided

With every shipment, we supply:

Material Test Certificates (MTC):

• Chemical composition analysis
• Mechanical test results
• Heat treatment records
• Traceability to raw material heat

Dimensional Reports:

• Actual measurements vs. specifications
• Statistical process control data
• Inspection certificates

Compliance Certificates:

• ASTM/ASME standard conformance
• Industry-specific certifications (FDA DMF, 3A Sanitary)
• ISO 9001 quality management certification
• ISO 14001 environmental management certification

Custom Capabilities

Tailored Solutions

Beyond standard offerings, we provide:

Custom Lengths:

• Cut-to-length services eliminating waste
• Precision cutting with protected ends
• Minimum order quantities apply

Special Alloys:

• Super duplex stainless steels
• 6-Moly grades (254 SMO)
• Nickel alloys (Inconel, Hastelloy, Monel)
• Titanium tubing for specialized applications

Unique Finishing:

• Combined finishing processes
• Custom Ra specifications
• Special passivation treatments
• Customer-specific marking requirements

Value-Added Services:

• Bending and forming
• End finishing (beveling, deburring)
• Assembly and subcomponent fabrication
• Kitting and specialized packaging

Pricing Structure

Investment Considerations

High purity tubing represents a premium product category. Pricing factors include:

• Material grade selection (304L vs. 316L)
• Manufacturing method (seamless vs. welded)
• Surface finish specification
• Diameter and wall thickness
• Order quantity and delivery schedule
• Testing and certification requirements

Sample Pricing Reference (USD):

• 6.35mm × 0.5mm high purity tube: Starting at $1.20/meter
• 8mm × 0.8mm high purity tube: Starting at $2.50/meter
• 10mm × 1mm ultra high purity tube: Starting at $3.10/meter

Prices vary based on specifications and market conditions. Contact sales for current quotations.

Harmonized System Code

For import/export documentation:

HS Code: 730630 – Other tubes, pipes and hollow profiles (stainless steel)

This classification applies to high purity stainless steel tubing for customs and tariff purposes.

Selection Guide

Choosing the Right High Purity Tubing

Consider these factors when specifying:

Application Environment:

• Corrosive media contact? → Consider 316L over 304
• High chloride content? → Specify molybdenum-containing grades
• Elevated temperatures? → Verify grade suitability

Purity Requirements:

• Pharmaceutical/biotech → Electropolished finish recommended
• Semiconductor → UHP grade with EP finish mandatory
• Food/beverage → Mechanical polish may suffice

Pressure & Temperature:

• High pressure systems → Seamless construction preferred
• Thermal cycling → Low carbon grades (304L/316L) essential

Cleaning Protocols:

• CIP/SIP systems → Electropolished surface optimal
• Manual cleaning → Mechanical polish acceptable

Budget Constraints:

• Tight budget → Bright annealed or mechanically polished
• Maximum performance → Electropolished seamless

Quality Assurance Commitment

Zero-Defect Manufacturing Philosophy

Our quality management system ensures:

Process Controls:

• Statistical process monitoring
• In-process inspection points
• Automated dimensional checking
• Real-time quality data tracking

Material Traceability:

• Heat lot identification throughout production
• Raw material certification verification
• Complete chain of custody documentation

Continuous Improvement:

• Regular process audits
• Customer feedback integration
• Advanced manufacturing technology adoption
• Employee training and certification programs

Third-Party Verification:

• Independent laboratory testing available
• Witness testing accommodations
• International inspection agency coordination

Technical Support Services

Engineering Assistance

Our technical team provides:

Application Consultation:

• Material selection guidance
• Compatibility assessments
• System design recommendations
• Installation best practices

Documentation Support:

• Custom specification development
• Regulatory compliance assistance
• Quality plan preparation
• Validation protocol support

Problem Solving:

• Failure analysis
• Contamination source investigation
• Process optimization recommendations
• Alternative solution evaluation

Why Choose Our High Purity Tubing?

Competitive Advantages

Manufacturing Excellence:

• State-of-the-art production facilities
• Controlled environment manufacturing
• Advanced testing equipment
• Experienced technical personnel

Quality Leadership:

• Consistent product performance
• Comprehensive testing protocols
• Full traceability systems
• Customer-specific quality plans

Supply Chain Reliability:

• Inventory programs available
• Flexible delivery schedules
• Global distribution network
• Technical support availability

Value Engineering:

• Application-specific solutions
• Cost-effective alternatives without compromise
• Continuous improvement culture
• Long-term partnership approach

Ordering Information

How to Specify

Please provide the following details for accurate quotation:

1. Size Requirements:
   • Outer diameter (OD)
   • Wall thickness (WT)
   • Length specifications
2. Material Specifications:
   • Grade (304, 304L, 316, 316L)
   • Manufacturing method preference (seamless/welded)
3. Surface Finish:
   • Finish type (BA, MP, EP)
   • Ra specifications if different from standard
4. Standards Compliance:
   • Applicable ASTM/ASME standards
   • Industry-specific requirements (BPE, 3A, etc.)
5. Testing Requirements:
   • Standard testing or special requirements
   • Certificate needs (MTC, PMI, etc.)
6. Quantity & Delivery:
   • Order quantity
   • Delivery location
   • Timeline requirements

Contact & Support

Get Expert Assistance

Our sales and technical teams at Mahadev Dairy Pharma Fitting are ready to help you select the optimal high purity and ultra high purity stainless steel tubing and flange solutions for your specific application requirements.

Connect with us to discuss:

• Custom specifications for Stainless Steel 304 Flanges and Stainless Steel 304L Flanges
• Technical challenges involving Stainless Steel 316 Flanges and Stainless Steel 316L Flanges
• Volume pricing for Stainless Steel 321 Flanges, Stainless Steel 347 Flanges, and Stainless Steel 310 Flanges
• Delivery schedules for Stainless Steel 904L Flanges and custom flange requirements
• Quality documentation for Stainless Steel Weld Neck Flanges, Slip On Flanges, and Socket Weld Flanges
• Application engineering support for Threaded Flanges, Blind Flanges, and Lap Joint Flanges
• Specialized solutions including Orifice Flanges, Long Weld Neck Flanges, Reducing Flanges, and Expander Flanges
• Complete product range from a trusted Stainless Steel Flanges Manufacturer in India and Mumbai
• Hygienic pharma solutions like SS Double Sealed Drain Trap – GMP Model

Additional Resources

Related Products:

• Stainless Steel Instrumentation Tubing
• Sanitary Process Piping
• Heat Exchanger Tubes
• Precision Capillary Tubing
• Coiled Stainless Steel Tubing
• Boiler Tubes
• Mechanical Tubing

Technical Documentation:

• Complete tube size charts
• Weight calculation tools
• Pressure rating tables
• Material compatibility guides
• Surface finish comparisons
• Installation guidelines

Industry Standards Reference:

• ASTM A269/A270 specifications
• ASME BPE requirements
• FDA guidance documents
• 3A sanitary standards
• European EN standards
• ISO certifications

This content is designed for manufacturers and distributors of high purity stainless steel tubing serving pharmaceutical, biotechnology, semiconductor, food processing, and laboratory equipment industries.
