Stainless Steel Butterfly Valves

Butterfly Valves Manufacturer & Global Supplier

Mahadev Dairy Pharma Fittings is a trusted manufacturer and exporter of high-quality stainless steel butterfly valves designed for long-lasting performance in various industrial applications. Our butterfly valves are engineered with precision to handle a wide range of fluids and gases while offering low maintenance and high durability.

We supply our SS butterfly valves across USA, UAE, Dubai, India, Canada, and the UK, ensuring fast delivery, international standards compliance, and competitive pricing.

What is a Stainless Steel Butterfly Valve?

A stainless steel butterfly valve is a quarter-turn rotational motion valve that regulates, isolates, or controls fluid flow using a rotating disc. These valves are ideal for applications that require quick shutoff, compact design, and lightweight construction.

Made from SS 304, SS 316, and other high-grade alloys, our valves provide excellent corrosion resistance, hygiene, and mechanical strength — making them perfect for industries such as:

  • Dairy & Food Processing

  • Pharmaceutical

  • Chemical & Petrochemical

  • HVAC & Water Treatment

  • Oil & Gas

  • Power Plants

Butterfly Valve Working Principle

The working principle of a butterfly valve is simple: when the actuator turns the disc (or “butterfly”) 90 degrees, the valve goes from fully open to fully closed. This quick operation makes it suitable for systems requiring frequent opening and closing or throttling flow.

  • Open Position: Disc is parallel to the flow

  • Closed Position: Disc is perpendicular to the flow

  • Partially Open: Used for regulating flow rate

Types of Butterfly Valves We Manufacture

We offer a wide range of butterfly valve types, customized to meet various industrial requirements:

  1. Wafer Type Butterfly Valve
    Compact, cost-effective, installed between flanges.

  2. Lug Type Butterfly Valve
    Can be removed from service without disrupting the entire line.

  3. Flanged Type Butterfly Valve
    Suitable for high-pressure systems with bolted connection.

  4. High Performance Butterfly Valve
    Designed for higher pressure and temperature applications.

  5. Double Offset Butterfly Valve
    Minimizes friction and improves service life with better sealing.

  6. Triple Offset Butterfly Valve
    Metal-to-metal sealing, suitable for high-performance needs.

  7. Sanitary Butterfly Valves
    Used in clean-in-place (CIP) systems for food & pharma applications.

  8. Victaulic Butterfly Valves
    Grooved-end valves used in HVAC, fire protection, and building services.

  9. Exhaust Butterfly Valves
    Used in automotive, marine, and industrial exhaust systems.

  10. Electric Actuated Butterfly Valves
    Equipped with programmable electric actuators for remote control.

  11. Pneumatic Actuated Butterfly Valves
    Ideal for fast and reliable actuation in automation systems.

  12. Hydraulic Butterfly Valves
    Designed for high-force applications and large-diameter pipelines.

Stainless Steel Butterfly Valve Price

Butterfly valve pricing depends on various factors like:

  • Valve size and material (SS304, SS316, etc.)

  • Type of connection (flanged, wafer, lug)

  • Pressure rating and temperature compatibility

  • Manual or automated actuation

  • Quantity and customization

At Mahadev Dairy Pharma Fittings, we offer competitive pricing for bulk orders and export-grade stainless steel butterfly valves. Contact us now for your custom quote.

Butterfly Valve Diagram

A butterfly valve diagram typically includes:

  • Body – Main casing housing the valve components

  • Disc – Rotating element that controls flow

  • Stem/Shaft – Connects the disc to the actuator

  • Seat – Sealing mechanism ensuring leak-free operation

  • Actuator – Manual handle, gear, pneumatic or electric actuator

Butterfly Valve Actuator Options

We offer both manual and automated actuator options:

 Standard Symbols for Butterfly Valves

  • Manual Lever / Gear Operated

  • Pneumatic Actuators – Fast, efficient actuation

  • Electric Actuators – Programmable, remote-controlled

  • Hydraulic Actuators – For high-force applications

Each actuator is tested for torque, sealing performance, and response time to meet your system requirements.

Butterfly Valve Actuator Options

We offer both manual and automated actuator options

  • Manual Lever / Gear Operated

  • Pneumatic Actuators – Fast, efficient actuation

  • Electric Actuators – Programmable, remote-controlled

  • Hydraulic Actuators – For high-force applications

Each actuator is tested for torque, sealing performance, and response time to meet your system requirements.

Butterfly Valve Symbol (Used in P&ID Diagrams)

Butterfly Valve Symbol (Used in P&ID Diagrams)

Butterfly valve symbols are essential for the accurate interpretation of technical drawings such as Piping and Instrumentation Diagrams (P&IDs), which depict the layout and function of a piping system. These symbols provide vital information about the valve type, configuration, and any actuation mechanisms. Misinterpreting these symbols can lead to design flaws, improper installation, and costly errors during operation.

Standard Butterfly Valve Symbols

The basic symbol for a butterfly valve typically includes:

  • Vertical line – Valve body

  • Diagonal line – Disc

  • Solid circle – Stem

  • Horizontal line – Pipe

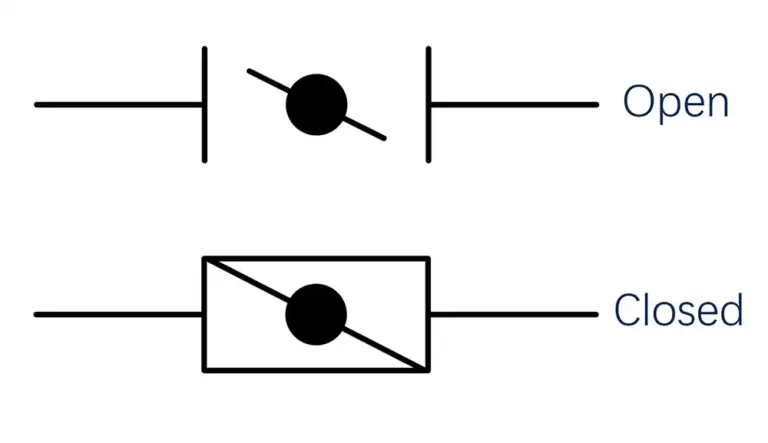

Butterfly Valve in P&ID Context

In P&ID diagrams, butterfly valves may be shown in these configurations:

  • Open Valve – Disc is parallel to the flow

  • Closed Valve – Disc is perpendicular to the flow

These schematic representations help engineers quickly identify the valve’s status and location.

International Standards for Butterfly Valve Symbols

ISO Standards (Global)

  • ISO 10628 and ISO 14617 define standard valve symbols, ensuring clarity in global engineering drawings.

ANSI/ASME Standards (North America)

  • ANSI/ASME Y32.2-1975 provides symbol standards for valves used in piping systems, widely accepted across the USA and Canada.

DIN Standards (Europe)

  • DIN 19227 outlines symbol representation for valves in engineering documentation, primarily used in Germany and across the EU.

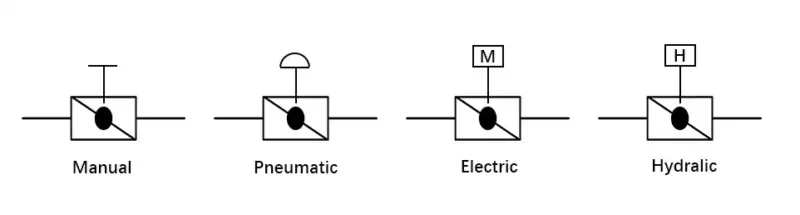

butterfly-valve-actuator-symbol-

Special Symbols for Actuated Butterfly Valves

  • Pneumatic Actuated Butterfly Valve Symbol: Includes actuator icon with lines indicating pneumatic control.

  • Electric Actuated Butterfly Valve Symbol: Shown with a motor symbol atop the valve.

  • Hydraulic Actuated Butterfly Valve Symbol: Depicted with hydraulic control symbols.

Each symbol provides clear communication to operators, designers, and technicians involved in installation and maintenance.

Flanged Type Butterfly Valve

Flanged butterfly valves are bolted between two flanged pipe ends and are suitable for high-pressure and critical applications. Benefits include:

  • Easy installation and removal

  • Strong sealing

  • Corrosion resistance with SS304/SS316 body

  • Ideal for water treatment, chemical plants, and HVAC

Butterfly Valve Function and Benefits

The function of a butterfly valve is to regulate, isolate, or throttle the flow of fluids. Key benefits include:

  • Fast 90° turn operation

  • Compact size and lightweight design

  • Suitable for large volume flows

  • Versatile across industries and media types

  • Lower maintenance cost

Why Choose Mahadev Dairy Pharma Fittings For Butterfly Valve?

Manufacturer Direct Pricing – No middlemen, better control and savings
Global Exports – Serving customers in USA, Canada, UAE, Dubai, UK & India
Certified Materials – SS 304, SS 316 valves conforming to ASTM and DIN standards
Customization – Valve size, pressure rating, seat material, and actuation options
On-Time Delivery – Timely shipment and export-ready packaging

Serving Global Markets

We proudly supply butterfly valves to international customers, ensuring compliance with regional standards and regulations:

USA: Food-grade valves, HVAC systems, water supply
Canada: Stainless steel valves for pharma and energy sectors
UAE & Dubai: Oil, gas, and marine pipeline valves
India: Full range for dairy, pharma, and industrial uses
UK: Export-grade stainless steel butterfly valves for chemicals and construction

A1: Prices vary by size, material, and actuator type. Contact us for a custom quote.



A2: Yes, we offer high-performance and flanged butterfly valves rated for high-pressure systems.



A3: Yes, we are active exporters to UAE, Dubai, and other GCC countries.



A4: Yes, we manufacture sanitary stainless steel butterfly valves ideal for the food and pharmaceutical industry.
